Wireless Access Points · Wi-Fi 6

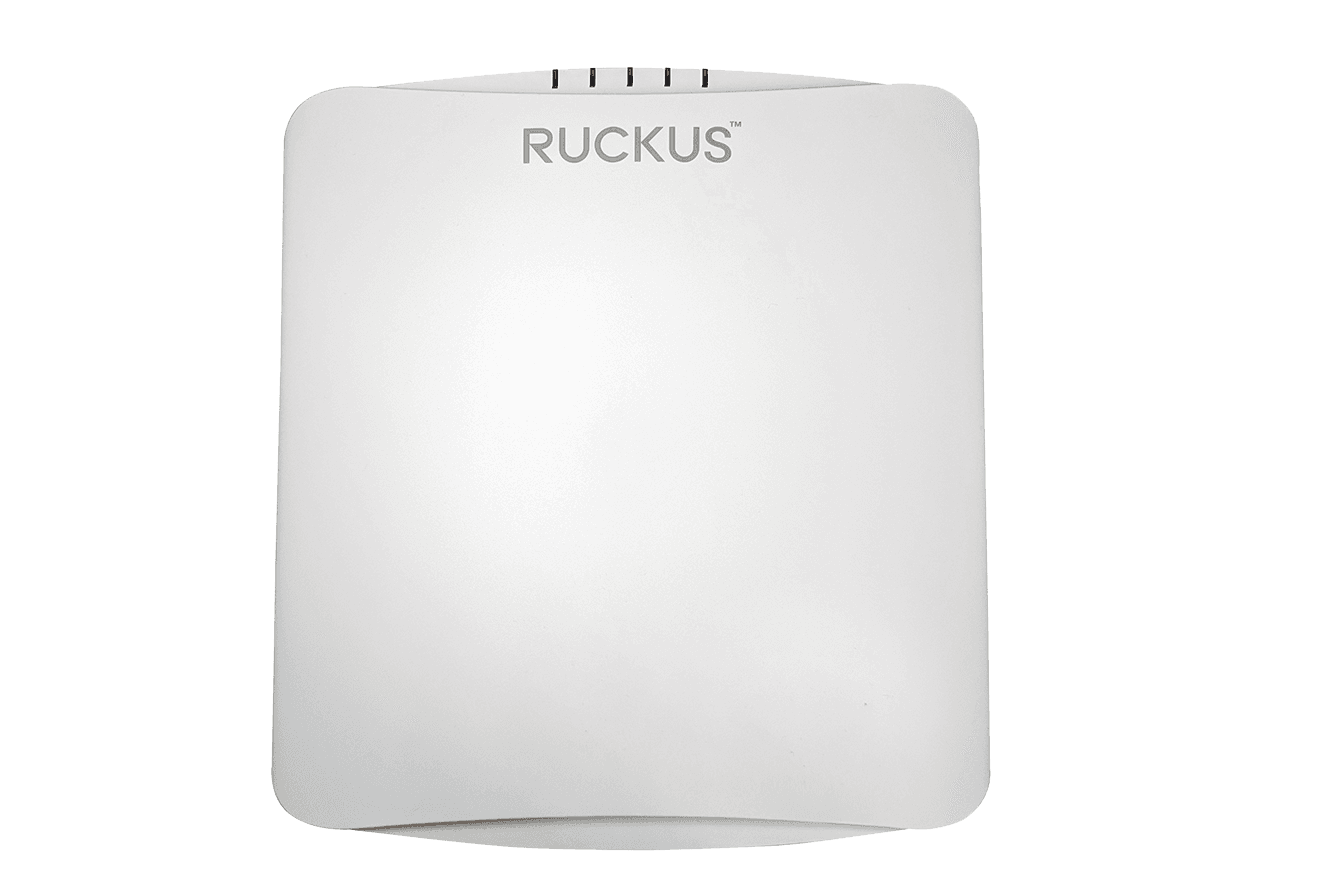

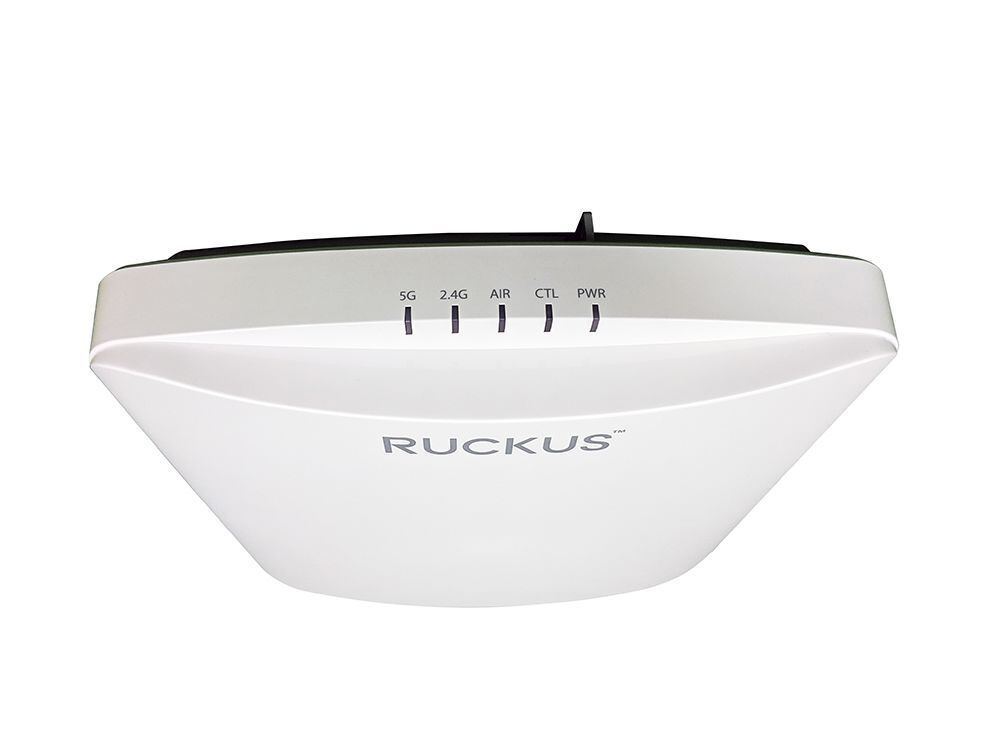

RUCKUS R750 Indoor Access Point

Reference R750

Very High-Performance Wi-Fi 6 4x4:4 Indoor Access Point with 3.5 Gbps max rate and Embedded IoT

Wi-Fi 6Wi-Fi Generation
3548 Mb/sCombined Max PHY Rate
1024Concurrent Users

RUCKUS R750 Indoor Access Point Features

The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.

The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.

The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.

Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.

The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.

Specifications

RUCKUS R750 Indoor Access Point — Specifications
Specification	Value
Product classification
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Indoor access point
Product Brand	RUCKUS®
General Specifications
Antenna Patterns, per band	4000+
Antenna Gain	Up to 3 dBi
BeamFlex	Yes
ChannelFly	Yes
Concurrent Users	1024
Controller Support	RUCKUS SmartZone \| RUCKUS Unleashed™ \| RUCKUS ZoneDirector \| Standalone

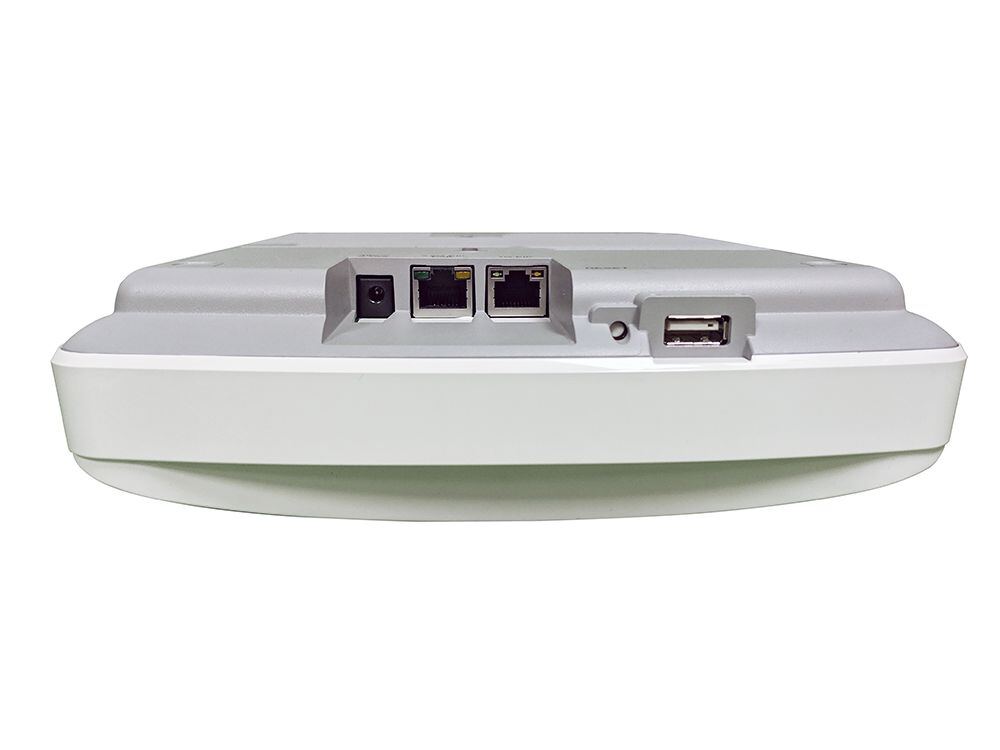

Ethernet Ports	1 x 1 GbE \| 1 x 2.5 GigE
IoT Support	IoT Onboard
Number of Radios	Dual-Radio
PD-MRC	Yes
PHY Rate at 2.4 GHz, maximum	1148 Mb/s
PHY Rate at 5 GHz, maximum	2400 Mb/s
Combined Max PHY Rate	3548 Mb/s
Radio Chains and Streams	4x4:4
Rx Sensitivity at 2.4 GHz	-102 dBm
Rx Sensitivity at 5 GHz	-102 dBm
SmartMesh	Yes
USB	USB 2.0
Venue Type	Education \| Hospitality \| Office/Retail \| Public Venue
Venue Sub-Type	Cafeteria/Multipurpose Room \| Library \| Lobby/Common Spaces \| Meeting Rooms \| Venue VIP Rooms
Wi-Fi Bands Supported	2.4 GHz \| 5 GHz
Wi-Fi Generation	Wi-Fi 6
Wi-Fi Interface Standard	IEEE 802.11a/b/g/n/ac/ax
Environmental Specifications
Operating Temperature	0 °C to +50 °C (+32 °F to +122 °F)
